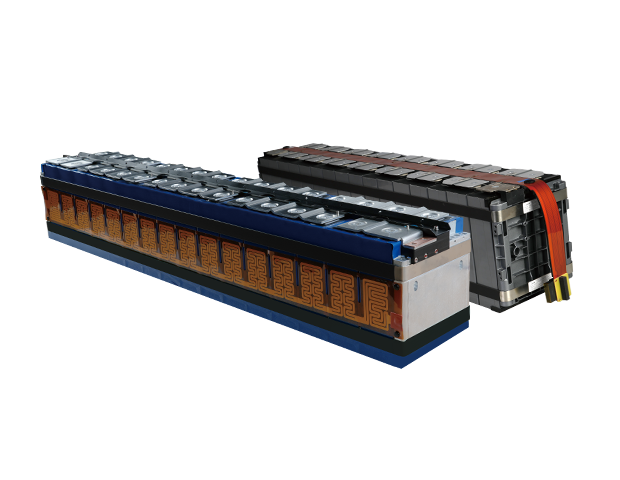

MP 2301P8S

  • Cell Model

    LP54173210

  • Cell Nominal Capacity(Ah)

    230

  • Link Method

    1P8S

  • Nominal Voltage (V)

    25.6

  • Voltage Range(V)

    22.4-28

  • Nominal Energy(kWh)

    5.88

  • Weight(kg)

    34

  • Dimensions W/H/D (mm)

    453×215×180

LITHIUM BATTERY CELLS

LISHEN offers high-performance lithium-ion cells based around proprietary POLYMER, LFP, NMC chemistry available in cylindrical and prismatic formats. At LISHEN, all source raw materials are inaccordance with international standards and practices, as well as some of LISHEN own standards to secure a supply chain free from corruption of people or planet.


High safety

· The cells have passed UL, IEC and other international certifications.

· Cell safety tested

· Lithium iron phosphate (LFP) chemistry for maximum safety and longevity


Strong environmental adaptability

Can be discharged in -20℃~55℃ environment


Good storage performance

25℃ storage for 28 days, capacity recovery rate ≥95%;


Long warranty


100% process traceability

Empowering each battery cell;


100% automated production

High precision, high efficiency, to ensure the consistency of the battery cells






Data Sheet

MP+ 230NP

MODEL NUMBER

MP 2301P8S

Cell Model

LP54173210

Cell Nominal Capacity(Ah)

230

Link Method

1P8S

Nominal Voltage (V)

25.6

Voltage Range(V)

22.4-28

Nominal Energy(kWh)

5.88

Weight(kg)

34

Dimensions W/H/D (mm)

453×215×180

Others

Preheating System on side, FPC on top are optional

We reserve the right to make technical changes. The values, outputs, other technical data, images, and diagrams in this prospectus and in data sheets, advertisements, and other promotional documents are approximate guidelines in all cases where they have not been identified as binding.
