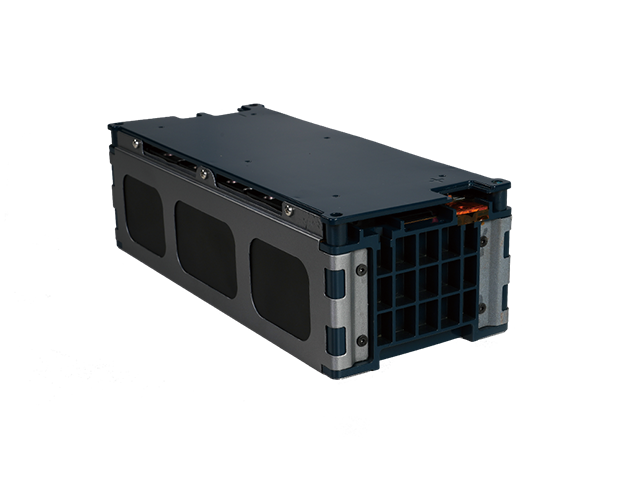

MP+VDA97A

Cell Model
LP2714897
Cell Nominal Capacity(Ah)
51
Link Method
2P6S
Nominal Voltage (V)
21.9
Voltage Range(V)
16.8-25.2
Nominal Energy(kWh)
2.22
Weight(kg)
12.4
Dimensions W/H/D (mm)
5.8

More +

LITHIUM BATTERY CELLS

LISHEN offers high-performance lithium-ion cells based around proprietary POLYMER, LFP, NMC chemistry available in cylindrical and prismatic formats. At LISHEN, all source raw materials are inaccordance with international standards and practices, as well as some of LISHEN own standards to secure a supply chain free from corruption of people or planet.

High safety

· The cells have passed UL, IEC and other international certifications.

· Cell safety tested

· Lithium iron phosphate (LFP) chemistry for maximum safety and longevity

Strong environmental adaptability

Can be discharged in -20℃~55℃ environment

Good storage performance

25℃ storage for 28 days, capacity recovery rate ≥95%;

Long warranty

100% process traceability

Empowering each battery cell;

100% automated production

High precision, high efficiency, to ensure the consistency of the battery cells

Data Sheet

MP+VDA97A

Cell Model	LP2714897
Cell Nominal Capacity(Ah)	51
Link Method	2P6S
Nominal Voltage (V)	21.9
Voltage Range(V)	16.8-25.2
Nominal Energy(kWh)	2.22
Weight(kg)	12.4
Module Volume(L)	5.8
Volume Specific Energy Density	383Wh/L
Peak Discharge Power (kW) 10S	4.38
Peak Charge Power (kW) 10S	3.13
We reserve the right to make technical changes. The values, outputs, other technical data, images, and diagrams in this prospectus and in data sheets, advertisements, and other promotional documents are approximate guidelines in all cases where they have not been identified as binding.
