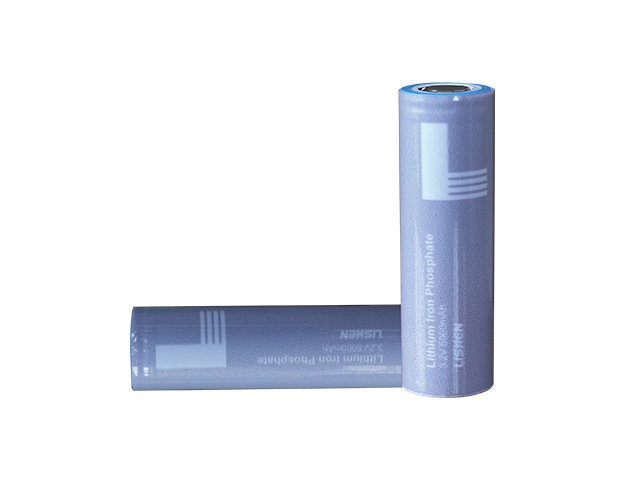

LR2170SA

  • Nominal Voltage

    3.65V

  • Rated Capacity

    4200mAh

  • Internal Resistance

    ≤0.5mΩ

  • Standard charge and discharge current

    0.5C/0.5C

  • Standard charge and discharge cut-off voltage

    4.2V/2.75V

  • Max. charge and discharge current (Continued)

    1.0C/1.0C

  • Weight(g)

    69

  • Recommended SOC usage range

    10%-90% N.A.

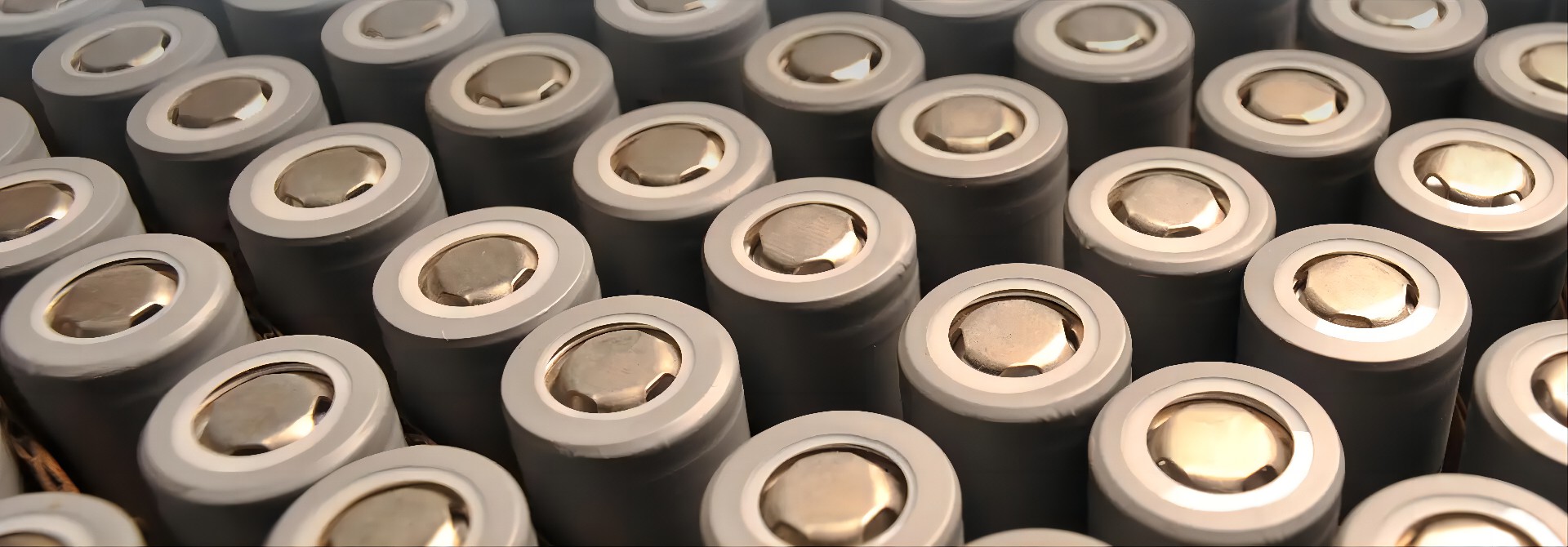

LITHIUM BATTERY CELLS

LISHEN offers high-performance lithium-ion cells based around proprietary POLYMER, LFP, NMC chemistry available in cylindrical and prismatic formats. At LISHEN, all source raw materials are inaccordance with international standards and practices, as well as some of LISHEN own standards to secure a supply chain free from corruption of people or planet.


High safety

· The cells have passed UL, IEC and other international certifications.

· Cell safety tested

· Lithium iron phosphate (LFP) chemistry for maximum safety and longevity


Strong environmental adaptability

Can be discharged in -20℃~55℃ environment


Good storage performance

25℃ storage for 28 days, capacity recovery rate ≥95%;


Long warranty


100% process traceability

Empowering each battery cell;


100% automated production

High precision, high efficiency, to ensure the consistency of the battery cells




Data Sheet

LP54173210

MODEL NUMBER
LR2170SA
Nominal Voltage

3.65V

Rated Capacity4200Ah
Internal Resistance(1KHz)≤0.5mΩ
Standard charge and discharge current0.5C/0.5C
Standard charge and discharge cut-off voltage4.2V/2.75V
Max. charge and discharge current (Continued)1.0C/1.0C
Recommended SOC usage range10%-90% A.
Charge operating temperature0℃~45℃
Discharge operating temperature-20℃~40℃

Dimensions W/H/D (mm)

21.7*70.9

Weight (g)

69
We reserve the right to make technical changes. The values, outputs, other technical data, images, and diagrams in this prospectus and in data sheets, advertisements, and other promotional documents are approximate guidelines in all cases where they have not been identified as binding.




Others
  • LP54173210
    • Nominal Voltage

      3.2V

    • Rated Capacity

      180Ah 202Ah 230Ah

    • Internal Resistance(1KHz)

      ≤0.25mΩ

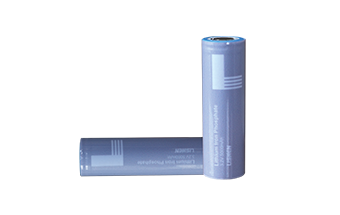

  • LR2170SA
    • Nominal Voltage

      3.65V

    • Rated Capacity

      4200mAh

    • Internal Resistance

      ≤0.5mΩ

  • MPCSS48100A
    • Cell Model

      LP37130200

    • Cell Nominal Capacity(Ah)

      100

    • Link Method

      1P16S

  • MPCSS48100C
    • Cell Model

      LP50160115

    • Cell Nominal Capacity(Ah)

      100

    • Link Method

      1P16S

  • IC-UP48100C5.1
    • Nominal capacity

      2.6KWh

    • Nominal voltage

      51.2V

    • Rated charge current

      50A(DC)

  • MP+VDA97A
    • Cell Model

      LP2714897

    • Cell Nominal Capacity(Ah)

      51

    • Link Method

      2P6S

  • MP 2301P16S
    • Cell Model

      LP54173210

    • Cell Nominal Capacity(Ah)

      230

    • Link Method

      1P16S

  • MPCSS48100B
    • Cell Model

      LP37130200

    • Cell Nominal Capacity(Ah)

      100

    • Link Method

      1P16S

  • MP 2301P12S
    • Cell Model

      LP54173210

    • Cell Nominal Capacity(Ah)

      230

    • Link Method

      2P8S

  • MP 2301P8S
    • Cell Model

      LP54173210

    • Cell Nominal Capacity(Ah)

      230

    • Link Method

      1P8S

  • MP 2301P12S
    • Cell Model

      LP54173210

    • Cell Nominal Capacity(Ah)

      230

    • Link Method

      1P12S
