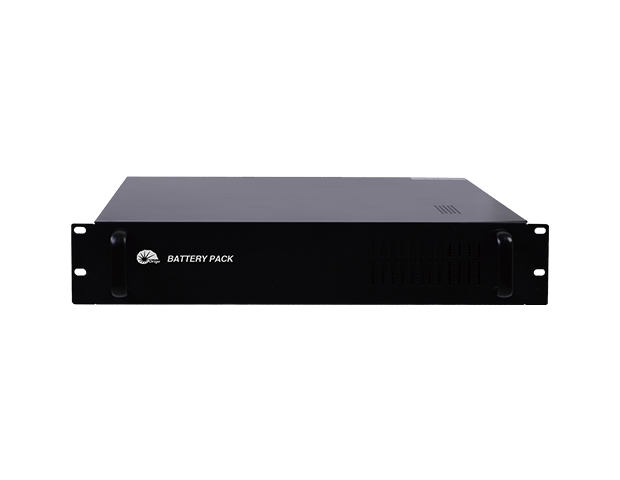

IC-UP48100C5.1

Nominal capacity
2.6KWh
Nominal voltage
51.2V
Rated charge current
50A(DC)
Rated discharge current
50A(DC)
Charge protection voltage
22.4-28
Nominal Energy(kWh)
11.77
Cell Capacity
100Ah
Recharge time
Recharge 90% within 2H

More +

LITHIUM BATTERY CELLS

LISHEN offers high-performance lithium-ion cells based around proprietary POLYMER, LFP, NMC chemistry available in cylindrical and prismatic formats. At LISHEN, all source raw materials are inaccordance with international standards and practices, as well as some of LISHEN own standards to secure a supply chain free from corruption of people or planet.

High safety

· The cells have passed UL, IEC and other international certifications.

· Cell safety tested

· Lithium iron phosphate (LFP) chemistry for maximum safety and longevity

Strong environmental adaptability

Can be discharged in -20℃~55℃ environment

Good storage performance

25℃ storage for 28 days, capacity recovery rate ≥95%;

Long warranty

100% process traceability

Empowering each battery cell;

100% automated production

High precision, high efficiency, to ensure the consistency of the battery cells

Data Sheet

IC-UP48100C5.1

Item	Parameter
Nominal capacity	2.6KWh
Nominal Voltage	51.2V
Rated charge current	50A(DC)
Rated discharge current	50A(DC)
Charge protection voltage	57.6V
Operating voltage Range	46.4-57.6V
Cell Capacity	100Ah
Recharge time	Recharge 90% within 2H
Continuous discharge current	50A(DC)10S
Temperature protection	45℃
Overcharge and Overdischarge	LED Alarm
Short-circuit protection	LED Alarm
Communication interface	CAN and RS485
Mechanical Dimension
Outline Dimension	482mm×460mm×132mm
Weight(kg)	41Kg
Ingress Protection level	IP54
We reserve the right to make technical changes. The values, outputs, other technical data, images, and diagrams in this prospectus and in data sheets, advertisements, and other promotional documents are approximate guidelines in all cases where they have not been identified as binding.
