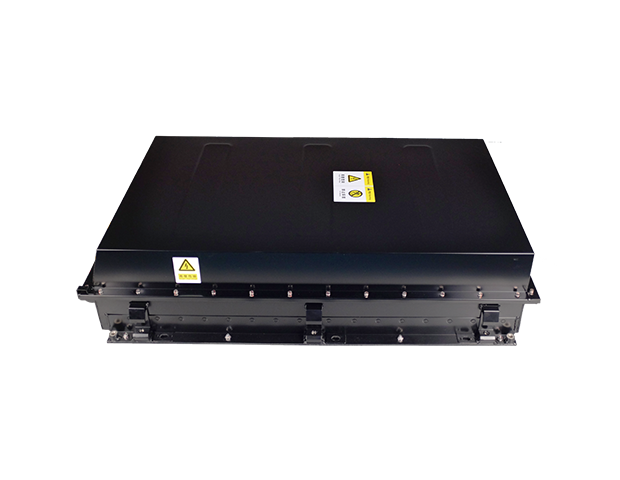

BBS + G-BOX

  • Nominal Voltage (V)

    124.8

  • Voltage Range (V)

    140

  • Nominal Capacity (Ah)

    230

  • Max Charging Current (A)

    230

  • Nominal Energy (Wh)

    28704

  • Dimensions W/H/D (mm)

    950ⅹ630ⅹ240

  • Weight (approximate) (Kg)

    191

  • Cell Link Method

    39S1P

BUS BATTERY SYSTEM—BBS +

This is a standardized product. The BBS + series products are based on the latest lithium-ion battery technology.

On the basis of standard C-box and G-box, the power battery system is specially developed for electric industrial vehicles. The typical application is buses. Create more value for customers by using ultra-long-life lithium iron phosphate batteries. The strong power of the lithium battery endows the vehicle with greater vitality,helps people realizing low-carbon life.


Reliable

• Proven high reliability ORIGO Series lithium-ion technology

• limited warranty

• Fully integrated standardized battery box unit

• Liquid cooling

• Lightweight design to increase the specific energy of the battery

Smart

• Remote diagnosis

• Mobile app-based monitoring and control

• Continually monitors energy management and ensures reliable operation

Flexible

• Based on a standard C-box and G-box, several system combinations can be formed

• It can form 4C, 8C, 3G, 4G, 8G, 2C+2G etc.

combinations of different voltages and capacities to meet different vehicle needs

Safe

• Cells safety tested

• Lithium iron phosphate (LFP) chemistry for maximum safety and longevity

• Sophisticated alarm system

• Multi-level thermal runaway management

• Effective fire suppression system

• Protection class IP67, no fear of wind and rain

Value

• Short charging time improves operational efficiency

• Long-life batteries will greatly reduce your total operating costs




Data Sheet

BBS + G-BOX

MODEL NUMBER

BBS + G-BOX
Nominal Voltage (V)124.8
Voltage Range (V)
140
Nominal Capacity (Ah)
230
Max Charging Current (A)
230
Nominal Energy (Wh)1 28704
Dimensions W/H/D (mm)a950ⅹ630ⅹ240
Weight (approximate) (Kg)191
Cell Link Method
39S1P
Ambient operating
temperature range
-20ºC to 65ºC (-4ºF to 149ºF)
Optimum operating
temperature range
5ºC to 30ºC (41ºF to 86ºF)
Ambient operating
temperature for charging3
-10ºC to 69ºC (14ºF to 149ºF)
Heating
Optional
Cooling
Liquid cooling
Enclosure rating
IP67
Smoke detectionYes
Alarm
Yes
Fire extinguishing systemYes
Remote CommunicationYes
Warranty4 Battery modules come with a 5-year or 300,000-kilometer                 warranty
