CESS 88i

Dimensions (L*W*H）
970*660*1650mm
Max. Weight
660Kg
Total energy
88KWh
Cell Capacity
230Ah
Nominal voltage
384.0V
Usable capacity
79.2KWh
Battery modules
5
AC Power Parameters
380vAC，50Hz

More +

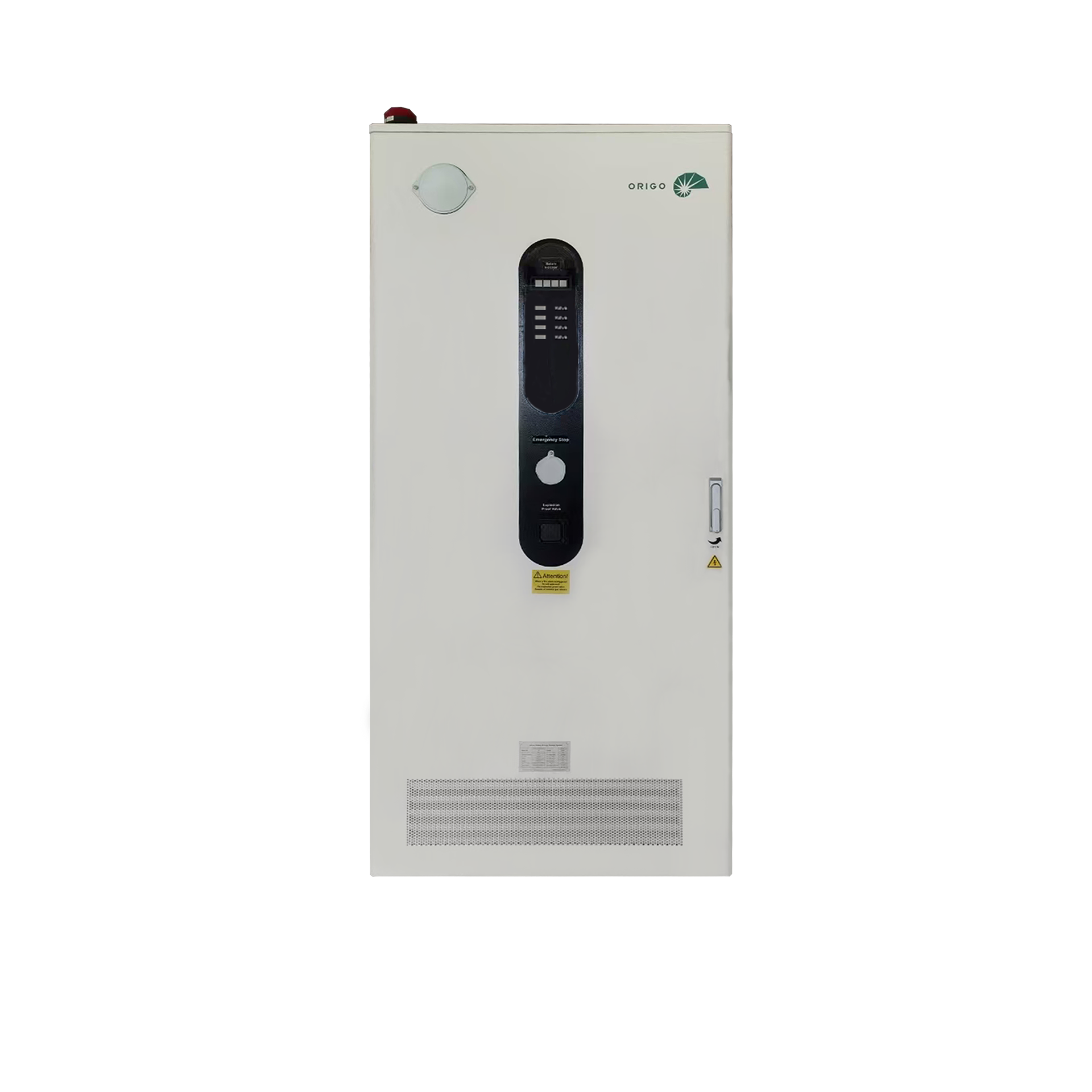

CESS+ Battery System

The CESS + series product is an energy storage product specially developed for industrial and commercial customers. It uses lithium iron phosphate long-life batteries, and the battery energy is as high as 232kWh.

It is safe and intelligent. It can be used in conjunction with solar power generation, and can also take advantage of the peak-valley price difference of the power grid. Energy storage to manage your energy efficiently. It consists of 4 battery module units, 1 set of high-performance inverter and 1 set of liquid cooling system. Can effectively meet customer demand for energy.

Reliable

• Use long-life batteries

• Proven high reliability inverter

• limited warranty

• Separate battery base unit

• Liquid cooling for smooth operation

Safe

• Battery safety testing

• Lithium Iron Phosphate (LFP) chemistry for maximum safety and longevity

• Multi-level alarm and protection

• fire suppression system

Clever

• Meshing capability for backup operations

• Remote software and firmware upgrades

• Mobile app-based monitoring

Convenient

Uninterrupted use of energy. Store excess solar energy for nighttime use, and use the power grid peak and valley price difference for energy storage. Helps achieve energy freedom.

Data Sheet

CESS 41F

MODEL NUMBER	CESS 88i
CESS 232i	This CESS232i battery system is based on Lishen's 11.65kWh battery unit module, which can be expanded to a 372KWh battery system. It integrate battery management unit (BMU), PCS,thermal runaway management unit, liquid cooling unit, and is a perfect and efficient battery system.
Total Energy	88kWh
Cell Capacity	230Ah
Battery modules	5
AC Power Parameters	380vAC，50Hz
AC Rated Current	74A
DC voltage range	336~420v
Cooling	Wind cooling
Altitude	Up to 2,500 meters (8,200 feet)
Ambient operating temperature range	-25ºC to 85ºC (-13ºF to 185ºF)
We reserve the right to make technical changes. The values, outputs, other technical data, images, and diagrams in this prospectus and in data sheets, advertisements, and other promotional documents are approximate guidelines in all cases.where they have not been identified as binding.

Download +

Others

GESS 5.0Mi
- Nominal energy
  5.02MWh
- Charge-discharge Rated current
  0.5C
- Nominal voltage
  1164.8V-1497.6V
Datasheet
GESS 3.7Mi
- Nominal energy
  3.72MWh
- Charge-discharge Rated current
  0.5C
- Nominal voltage
  1331.2v
Datasheet
GESS 1.4Mi
- Nominal energy
  1.47MWh
- Charge-discharge Rated current
  2C
- Nominal voltage
  729.6V
Datasheet
GESS 3.4Mi
- Nominal energy
  3.35MWh
- Charge-discharge Rated current
  0.5C
- Nominal voltage
  1331.2v
Datasheet
GESS 3.3Mi
- Nominal energy
  3.29MWh
- Charge-discharge Rated current
  1C
- Nominal voltage
  1142~1468.8V
Datasheet
