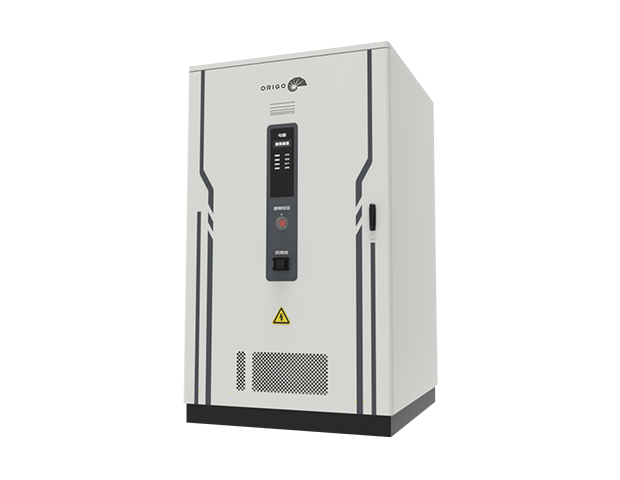

CESS 215i

Total Energy
215.1kWh
Nominal Power
107.5kW
Cell Capacity
280Ah
Nominal Voltage
768v
Cell Series ＆ Parallel
240S1P
Usable Capacity
193.5kWh
Dimensions of One Cabinet (L*W*H)
1400*1200*2200mm
Max.Weight
2300kg

More +

CESS+ Battery System

The CESS + series product is an energy storage product specially developed for industrial and commercial customers. It uses lithium iron phosphate long-life batteries, and the battery energy is as high as 232kWh.

It is safe and intelligent. It can be used in conjunction with solar power generation, and can also take advantage of the peak-valley price difference of the power grid. Energy storage to manage your energy efficiently. It consists of 4 battery module units, 1 set of high-performance inverter and 1 set of liquid cooling system. Can effectively meet customer demand for energy.

Reliable

• Use long-life batteries

• Proven high reliability inverter

• limited warranty

• Separate battery base unit

• Liquid cooling for smooth operation

Safe

• Battery safety testing

• Lithium Iron Phosphate (LFP) chemistry for maximum safety and longevity

• Multi-level alarm and protection

• fire suppression system

Clever

• Meshing capability for backup operations

• Remote software and firmware upgrades

• Mobile app-based monitoring

Convenient

Uninterrupted use of energy. Store excess solar energy for nighttime use, and use the power grid peak and valley price difference for energy storage. Helps achieve energy freedom.

Data Sheet

CESS 215i

Item	Parameter
CESS 215i	This CESS215i battery system is based on the LISHEN’s 21.5kWh battery unit module,which can be expanded to a 215kWh system. It integrates battery management unit(BMU), PCS, thermal runaway management unit, liquid cooling unit, and is a perfect ＆ efficient battery storage solution.
Total Energy	215.1kWh
Nominal Power	107.5kW
Cell Capacity	280Ah
Nominal Voltage	768v
Cell Series ＆ Parallel	240S1P
Usable Capacity	193.5kWh
Dimensions of One Cabinet (LWH)	140012002200mm
Max.Weight	2300kg
Pack Modules	10
AC Power Parameters	380Vac, 50Hz
Rated Current	144A
DC Voltage Range	672~864V
Cooling	Forced air cooling
Altitude	-Up to 3000 meters
Ambient Operating Temperature Range	-15℃ to 45℃ (5℉to 113℉)
We reserve the right to make technical changes. The values, outputs, other technical data, images, and diagrams in this prospectus and in data sheets, advertisements, and other promotional documents are approximate guidelines in all cases.where they have not been identified as binding.

Download +

Others

GESS 5.0Mi
- Nominal energy
  5.02MWh
- Charge-discharge Rated current
  0.5C
- Nominal voltage
  1164.8V-1497.6V
Datasheet
GESS 3.7Mi
- Nominal energy
  3.72MWh
- Charge-discharge Rated current
  0.5C
- Nominal voltage
  1331.2v
Datasheet
GESS 1.4Mi
- Nominal energy
  1.47MWh
- Charge-discharge Rated current
  2C
- Nominal voltage
  729.6V
Datasheet
GESS 3.4Mi
- Nominal energy
  3.35MWh
- Charge-discharge Rated current
  0.5C
- Nominal voltage
  1331.2v
Datasheet
GESS 3.3Mi
- Nominal energy
  3.29MWh
- Charge-discharge Rated current
  1C
- Nominal voltage
  1142~1468.8V
Datasheet
