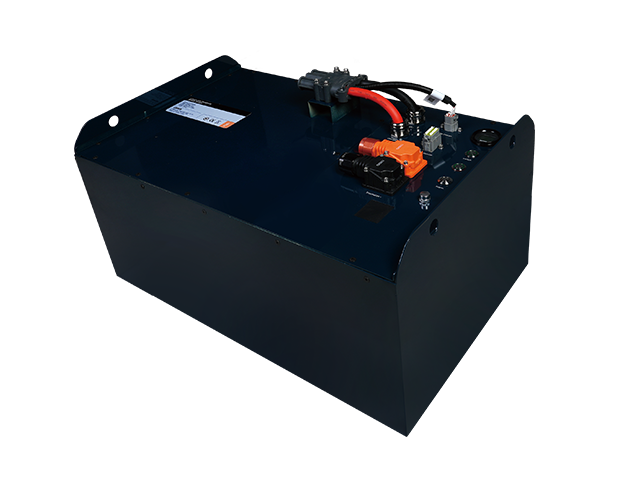

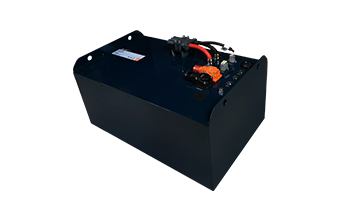

FSS + R76270NF2129

Nominal Voltage (V)
76.8
Voltage Range (V)
60~87.6
Nominal Capacity (Ah)
280
Max Discharging Current (A)
280
Dimensions W/H/D (mm)
565ⅹ450ⅹ1000
Weight (APPROX,Kg)
170
Cell Link Method
24S1P
Ambient operating temperature range 2
-20ºC to 60ºC (-4ºF to 140ºF)

More +

FORKLIFT BATTERY SYSTEM—FSS

FSS + series products are based on the latest lithium-ion battery technology, a power battery system specially developed for electric forklifts. It uses long-life lithium iron phosphate batteries to create more value for customers.

The strong power of the lithium battery endows the vehicle with greater vitality.

The intelligent management system makes the vehicle smarter

Reliable

• Proven high reliability ORIGO Series lithium-ion technology

• limited warranty

• Standardized battery module unit

• Cooling (fans)

• Even under extreme power requirements such as

full-load operation, the full energy of the battery is

available 1

Smart

• Remote diagnosis

• Mobile app-based monitoring and control

• Continually monitors energy management and

ensures reliable operation

Simple

• Fully integrated battery system

• Quick and easy plug-and-play installation

• No more battery changing necessary

• The charging can be interrupted at any

time with no adverse effects

• No battery maintenance and does not emit

Gas

Safe

• Cells safety tested

• Lithium iron phosphate (LFP) chemistry for

maximum safety and longevity

Value

• Short charging times, no maintenance and long

battery life will greatly reduce your total cost of

operation.

• May be used continuously in economical

multi-shift operation

• No expensive battery changing systems with their

heavy drain on time and human resources

Data Sheet

FSS + R76270NF2129

MODEL NUMBER	FSS + R76270NF2129
Nominal Voltage (V)	76.8
Voltage Range (V)	60~87.6
Nominal Capacity (Ah)	280
Max Discharging Current (A)	280
Dimensions W/H/D (mm)	565ⅹ450ⅹ1000
Weight (APPROX,Kg)	170
Cell Link Method	24S1P
Ambient operating temperature range 2	-20ºC to 60ºC (-4ºF to 140ºF)
Optimum operating temperature range	5ºC to 30ºC (41ºF to 86ºF)
Ambient operating temperature for charging 3	-5ºC to 55ºC (23ºF to 131ºF)
Heating	Coil heating film board
Cooling	Natural cooling or Fan
Enclosure rating	IP54
Power Display	Yes
Alarm	Yes
GPS Line	Yes
Remote Communication	Yes
Charging Connector	REMA-160A-95012-01
Discharging Connector	REMA-160A-95011-41
Com Connector	Amphenol C-AT04
Certifications	ICE62619, UN38.3
Warranty⁴	Battery modules come with a 10000-hour warranty

Download +

Others

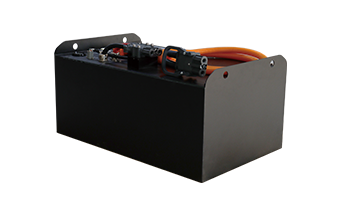

FSS + C76540NF2206
- Nominal Voltage (V)
  76.8
- Voltage Range (V)
  60~87.6
- Nominal Capacity (Ah)
  544
Datasheet

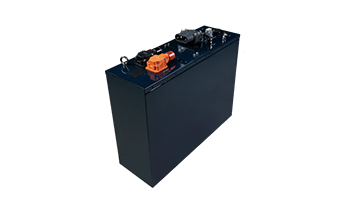

FSS + R76270NF2129
- Nominal Voltage (V)
  76.8
- Voltage Range (V)
  60~87.6
- Nominal Capacity (Ah)
  280
Datasheet

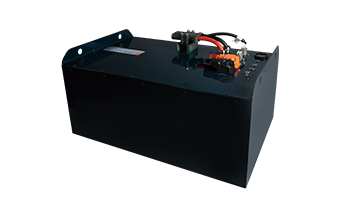

FSS + C24400NF2211
- Nominal Voltage (V)
  25.6
- Voltage Range (V)
  20~29.6
- Nominal Capacity (Ah)
  404
Datasheet

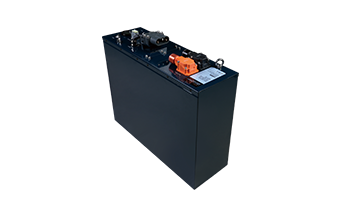

FSS + C48400NF2017
- Nominal Voltage (V)
  51.2
- Voltage Range (V)
  40~57.6
- Nominal Capacity (Ah)
  404
Datasheet

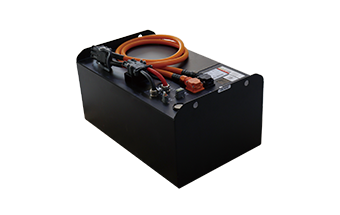

FSS + C48540NF2237
- Nominal Voltage (V)
  51.2
- Voltage Range (V)
  40~58.4
- Nominal Capacity (Ah)
  544
Datasheet

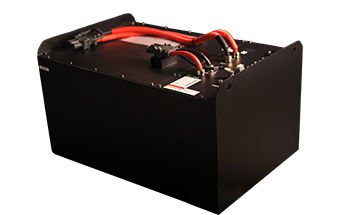

FSS + S76230NF2216
- Nominal Voltage (V)
  76.8
- Voltage Range (V)
  60~87.6
- Nominal Capacity (Ah)
  230
Datasheet

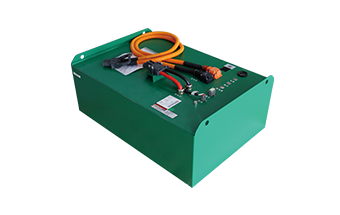

FSS + P24200NF2004
