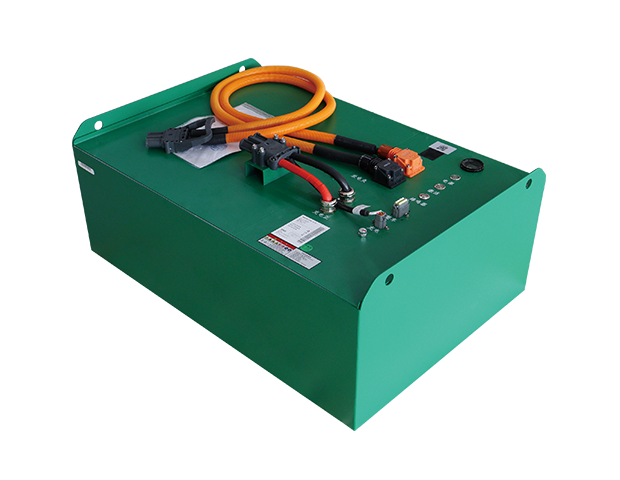

FSS + C48400NF2017

  • Nominal Voltage (V)

    51.2

  • Voltage Range (V)

    40~57.6

  • Nominal Capacity (Ah)

    404

  • Max Discharging Current (A)

    350

  • Dimensions W/H/D (mm)

    780 x 400 x 495

  • Weight (APPROX,Kg)

    180

  • Cell Link Method

    16S2P

  • Ambient operating temperature range 2

    -20ºC to 60ºC (-4ºF to 140ºF)

FORKLIFT BATTERY SYSTEM—FSS

FSS + series products are based on the latest lithium-ion battery technology, a power battery system specially developed for electric forklifts. It uses long-life lithium iron phosphate batteries to create more value for customers.

The strong power of the lithium battery endows the vehicle with greater vitality.

The intelligent management system makes the vehicle smarter


Reliable

• Proven high reliability ORIGO Series lithium-ion technology

• limited warranty

• Standardized battery module unit

• Cooling (fans)

• Even under extreme power requirements such as

full-load operation, the full energy of the battery is

available 1

Smart

• Remote diagnosis

• Mobile app-based monitoring and control

• Continually monitors energy management and

ensures reliable operation

Simple

• Fully integrated battery system

• Quick and easy plug-and-play installation

• No more battery changing necessary

• The charging can be interrupted at any

time with no adverse effects

• No battery maintenance and does not emit

Gas

Safe

• Cells safety tested

• Lithium iron phosphate (LFP) chemistry for

maximum safety and longevity

Value

• Short charging times, no maintenance and long

battery life will greatly reduce your total cost of

operation.

• May be used continuously in economical

multi-shift operation

• No expensive battery changing systems with their

heavy drain on time and human resources




Data Sheet

FSS + C48400NF2017

MODEL NUMBER

FSS + C48400NF2017
Nominal Voltage (V)51.2
Voltage Range (V)40~57.6
Nominal Capacity (Ah)404
Max Charging Current (A)350
Dimensions W/H/D (mm)780 x 400 x 495
Weight (APPROX,Kg)180
Cell Link Method16S2P

Ambient operating temperature range 2

-20ºC to 60ºC (-4ºF to 140ºF)

Optimum operating temperature range

5ºC to 30ºC (41ºF to 86ºF)

Ambient operating temperature for charging 3

-5ºC to 55ºC (23ºF to 131ºF)
HeatingNo
CoolingNatural cooling or Fan
Enclosure ratingIP54
Power DisplayYes
AlarmYes
GPS LineOptional
Remote CommunicationOptional
Charging ConnectorREMA-160A-95012-01
Discharging ConnectorREMA-160A-95011-41
Com ConnectorAmphenol C-AT04
CertificationsICE62619, UN38.3
Warranty4

Battery modules come with a 10000-hour warranty
