UN
Energy Freedom

GESS 3.3Mi

  • Nominal energy

    3.29MWh

  • Charge-discharge Rated current

    1C

  • Nominal voltage

    1142~1468.8V

  • Dimension(LxWxHmm)

    6058x2896x2438

  • Battery cell

    120Ah

  • Module

    12S3P

  • Weight

    30t

  • GESS 3.3Mi

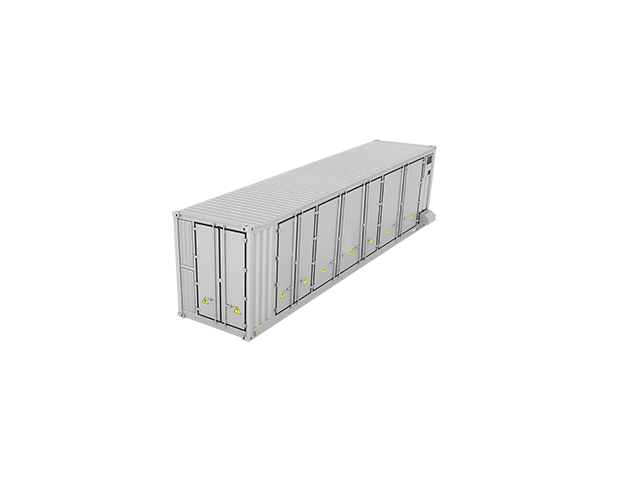

    This GES3.3Mi battery system is a battery system integrated in a 40-foot container. It includes: energy management system (EMS), battery management system (BMU), PCS system, thermal runaway management system, and liquid cooling system. It is a complete and efficient large-scale battery system formed by integrating multiple systems.

More +

GESS + BATTERY SYSTEM

The GESS+ series of large-scale energy storage power stations are energy storage and frequency regulation products developed for customers on the power generation side and grid side. This product can also meet the energy storage needs of large industrial users. It uses lithium iron phosphate long-life battery and has excellent safety. It's the perfect system to effectively manage your energy for ongoing value.

Reliable

• Use Lithium iron phosphate batteries

• Proven high reliability PCS

• limited warranty

• Liquid cooling for smooth operation

Safe

• Battery safety testing

• Lithium Iron Phosphate (LFP) chemistry for maximum safety and longevity

• Multi-level alarm and protection

• Fire suppression system

Clever

• Meshing capability for backup operations

• Remote software and firmware upgrades

• Mobile app-based monitoring

Value

• Uninterrupted use of energy

• Smooth the peak and valley of the power grid

• Grid frequency regulation

• Promote the realization of energy freedom



Data Sheet

GESS 3.3Mi


MODEL NUMBER
GESS3.3Mi
GESS3.3Mi

This GES3.3Mi battery system is a battery system integrated in a 40-foot container. It includes: energy management system (EMS), battery management system (BMU), PCS system, thermal runaway management system, and liquid cooling system. It is a complete and efficient large-scale battery system formed by integrating multiple systems.

Nominal energy3.29MWh
Charge-discharge Rated current0.5C
Nominal voltage1142~1468.8V
Dimension(WxHxDmm)6058x2896x2438
Battery cell120Ah
Module12S3P
Weight30t

We reserve the right to make technical changes. The values, outputs, other technical data,images, and diagrams in this prospectus and in data sheets, advertisements, and other promotional documents are approximate guidelines in all cases where they have not been identified as binding.



Download +
Others
  • GESS 5.0Mi
    • Nominal energy

      5.02MWh

    • Charge-discharge Rated current

      0.5C

    • Nominal voltage

      1164.8V-1497.6V

    Datasheet
  • GESS 3.7Mi
    • Nominal energy

      3.72MWh

    • Charge-discharge Rated current

      0.5C

    • Nominal voltage

      1331.2v

    Datasheet
  • GESS 1.4Mi
    • Nominal energy

      1.47MWh

    • Charge-discharge Rated current

      2C

    • Nominal voltage

      729.6V

    Datasheet
  • GESS 3.4Mi
    • Nominal energy

      3.35MWh

    • Charge-discharge Rated current

      0.5C

    • Nominal voltage

      1331.2v

    Datasheet
  • GESS 3.3Mi
    • Nominal energy

      3.29MWh

    • Charge-discharge Rated current

      1C

    • Nominal voltage

      1142~1468.8V

    Datasheet
