GESS 3.7Mi

  • Nominal energy

    3.72MWh

  • Charge-discharge Rated current

    0.5C

  • Nominal voltage

    1331.2v

  • Dimension(LxWxHmm)

    6058x2438x2896mm

  • Battery cell

    280Ah

  • Module

    52S1P

  • Weight

    30t

  • GESS 3.7Mi

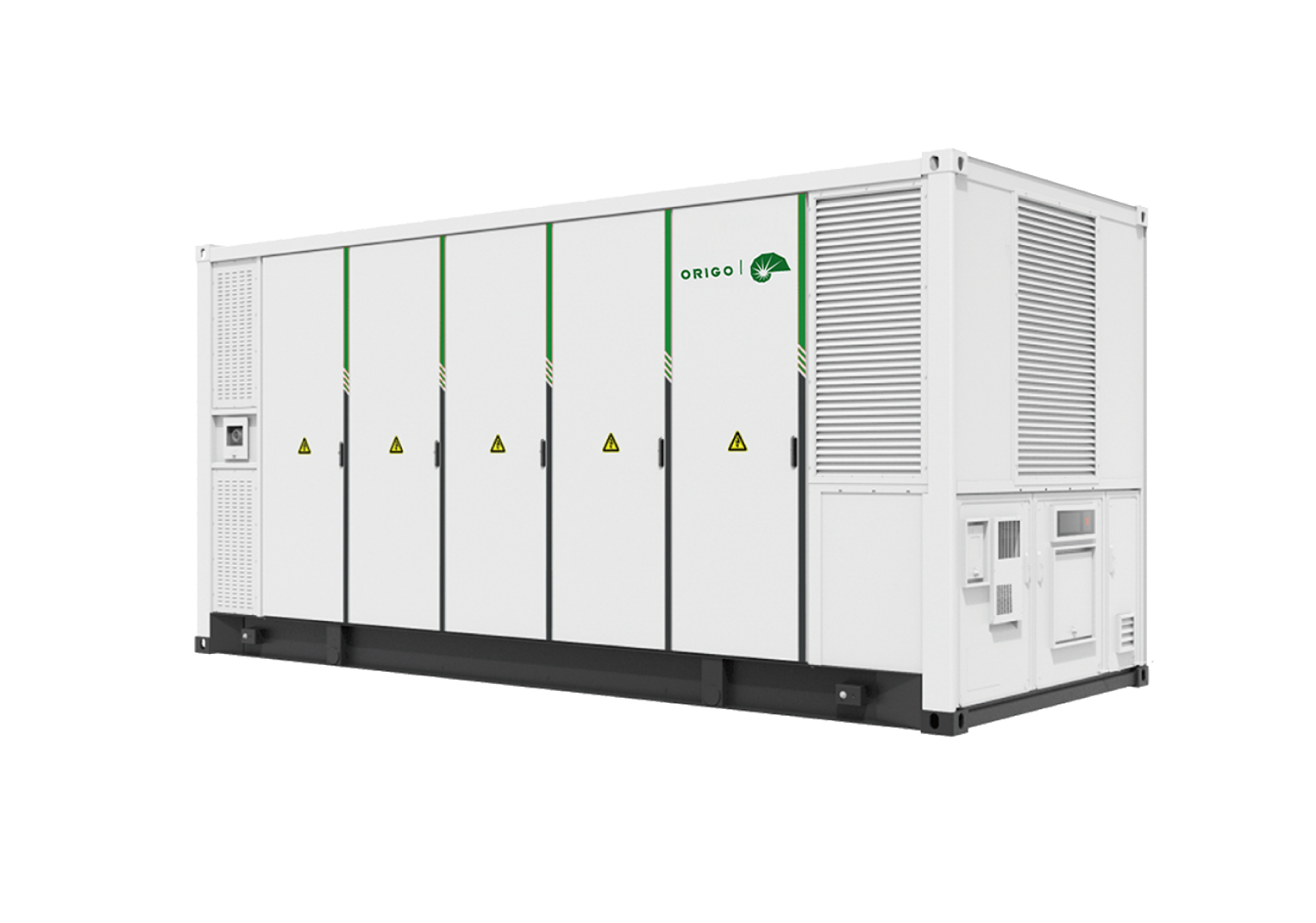

    This GES3.7Mi battery system is a battery system integrated in a 20-foot container. It includes: energy management system (EMS), battery management system (BMU), PCS system, thermal runaway management system, and liquid cooling system. It is a complete and efficient large-scale battery system formed by integrating multiple systems.

More +

GESS + BATTERY SYSTEM

The GESS+ series of large-scale energy storage power stations are energy storage and frequency regulation products developed for customers on the power generation side and grid side. This product can also meet the energy storage needs of large industrial users. It uses lithium iron phosphate long-life battery and has excellent safety. It's the perfect system to effectively manage your energy for ongoing value.

Reliable

• Use Lithium iron phosphate batteries

• Proven high reliability PCS

• limited warranty

• Liquid cooling for smooth operation

Safe

• Battery safety testing

• Lithium Iron Phosphate (LFP) chemistry for maximum safety and longevity

• Multi-level alarm and protection

• Fire suppression system

Clever

• Meshing capability for backup operations

• Remote software and firmware upgrades

• Mobile app-based monitoring

Value

• Uninterrupted use of energy

• Smooth the peak and valley of the power grid

• Grid frequency regulation

• Promote the realization of energy freedom



Data Sheet

GESS 3.7Mi

MODEL NUMBER
GESS 3.7Mi
GESS 3.4Mi

This GES3.7Mi battery system is a battery system integrated in a 20-foot container. It includes: energy management system (EMS), battery management system (BMU), PCS system, thermal runaway management system, and liquid cooling system. It is a complete and efficient large-scale battery system formed by integrating multiple systems.


Nominal energy3.72MWh
Charge-dischargeRated current0.5C
Nominal voltage1331.2
Dimension(WxHxDmm)6058x2438x2896mm
Battery cell280Ah
Module52S1P
Weight30t

We reserve the right to make technical changes. The values, outputs, other technical data, images, and diagrams in this prospectus and in data sheets, advertisements, and other promotional documents are approximate guidelines in all cases where they have not been identified as binding.



Download +
Others
  • GESS 5.0Mi
    • Nominal energy

      5.02MWh

    • Charge-discharge Rated current

      0.5C

    • Nominal voltage

      1164.8V-1497.6V

    Datasheet
  • GESS 3.7Mi
    • Nominal energy

      3.72MWh

    • Charge-discharge Rated current

      0.5C

    • Nominal voltage

      1331.2v

    Datasheet
  • GESS 1.4Mi
    • Nominal energy

      1.47MWh

    • Charge-discharge Rated current

      2C

    • Nominal voltage

      729.6V

    Datasheet
  • GESS 3.4Mi
    • Nominal energy

      3.35MWh

    • Charge-discharge Rated current

      0.5C

    • Nominal voltage

      1331.2v

    Datasheet
  • GESS 3.3Mi
    • Nominal energy

      3.29MWh

    • Charge-discharge Rated current

      1C

    • Nominal voltage

      1142~1468.8V

    Datasheet
