TBS + 104NT1910

Number of Boxes
2ⅹQ4
Nominal Voltage (V)
518.4
Voltage Range (V)
453~567
Nominal Energy (Wh)
119232
Nominal Capacity (Ah)
230
Max charging current (A)
230
Weight (approximate) (Kg)
752
Q4 Cell Link Method
1P81S

More +

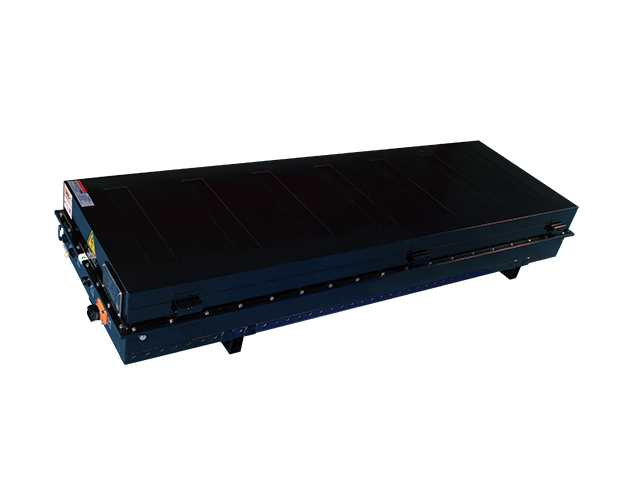

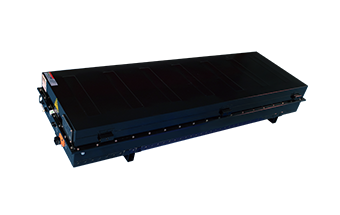

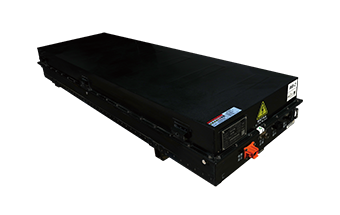

TRUCK BATTERY SYSTEM—TBS

The TBS + series power battery system is based on the standard Q-box, a standardized product specially developed for electric medium truck users. Use ultra-long life and safe lithium iron phosphate batteries to create more value for customers. The strong power of the lithium battery endows the vehicle with greater vitality,helps people realizing low-carbon life.

Reliable

• Proven high reliability ORIGO Series lithium-ion technology

• limited warranty

• Fully integrated standardized battery box unit

• Natural cooling

• Lightweight design to increase the specific energy of the battery

Smart

• Remote diagnosis

• Mobile app-based monitoring and control

• Continually monitors energy management and ensures reliable operation

Flexible

• Based on a standard C-box and G-box, several system combinations can be formed

• It can form 2Q1, 2Q2, 2Q3, 2Q4 etc.

• Combinations of different voltages and capacities to meet different vehicle needs

Safe

• Cells safety tested

• Lithium iron phosphate (LFP) chemistry for maximum safety and longevity

• Sophisticated alarm system

• Multi-level thermal runaway management

• effective fire suppression system

• Protection class IP67, no fear of wind and rain

Value

• Short charging time improves operational efficiency.

• Long-life batteries will greatly reduce your total operating costs

Data Sheet

TBS + 104NT1910

MODEL NUMBER	TBS + 104NT1910
Number of Boxes	2ⅹQ4
Nominal Voltage (V)	518.4
Voltage Range (V)	453~567
Nominal Energy (Wh)	119232
Nominal Capacity (Ah)	230
Max charging current (A)	230
Weight (approximate) (Kg)	752
Q4 Link Method	1P81S
Q4 Nominal Voltage	259.2
Dimensions W/H/D (mm)	600ⅹ240ⅹ1830
Ambient operating temperature range ²	-20ºC to 65ºC (-4ºF to 149ºF)
Optimum operating temperature range	5ºC to 30ºC (41ºF to 86ºF)
Ambient operating temperature for charging	-10ºC to 69ºC (14ºF to 149ºF)
Heating	Optional
Cooling	Nature cooling
Enclosure rating	IP67
Smoke detection	Yes
Alarm	Yes
Fire extinguishing system	Yes
Remote Communication	Yes
Warranty⁴	Battery modules come with a 5-year or 200,000-kilometer warranty
