TBS + 104NT1910

  • Number of Boxes

    2ⅹQ4

  • Nominal Voltage (V)

    518.4

  • Voltage Range (V)

    453~567

  • Nominal Energy (Wh)

    119232

  • Nominal Capacity (Ah)

    230

  • Max charging current (A)

    230

  • Weight (approximate) (Kg)

    752

  • Q1 Cell Link Method

    1P81S

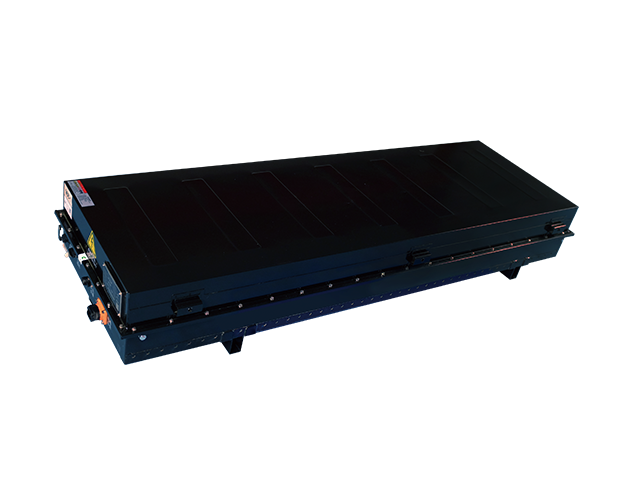

TRUCK BATTERY SYSTEM—TBS

The TBS + series power battery system is based on the standard Q-box, a standardized product specially developed for electric medium truck users. Use ultra-long life and safe lithium iron phosphate batteries to create more value for customers. The strong power of the lithium battery endows the vehicle with greater vitality,helps people realizing low-carbon life.


Reliable

• Proven high reliability ORIGO Series lithium-ion technology

• limited warranty

• Fully integrated standardized battery box unit

• Natural cooling

• Lightweight design to increase the specific energy of the battery

Smart

• Remote diagnosis

• Mobile app-based monitoring and control

• Continually monitors energy management and ensures reliable operation

Flexible

• Based on a standard C-box and G-box, several system combinations can be formed

• It can form 2Q1, 2Q2, 2Q3, 2Q4 etc.

• Combinations of different voltages and capacities to meet different vehicle needs

Safe

• Cells safety tested

• Lithium iron phosphate (LFP) chemistry for maximum safety and longevity

• Sophisticated alarm system

• Multi-level thermal runaway management

• effective fire suppression system

• Protection class IP67, no fear of wind and rain

Value

• Short charging time improves operational efficiency.

• Long-life batteries will greatly reduce your total operating costs




Data Sheet

TBS + 104NT1910

MODEL NUMBER

TBS + 104NT1910
Number of Boxes2ⅹQ4
Nominal Voltage (V)518.4
Voltage Range (V)453~567
Nominal Energy (Wh) 119232
Nominal Capacity (Ah)230
Max charging current (A)230
Weight (approximate) (Kg)752
Q4 Link Method1P81S
Q4 Nominal Voltage259.2
Dimensions W/H/D (mm)600ⅹ240ⅹ1830
Ambient operating temperature range 2
-20ºC to 65ºC (-4ºF to 149ºF)
Optimum operating temperature range5ºC to 30ºC (41ºF to 86ºF)

Ambient operating temperature for charging

-10ºC to 69ºC (14ºF to 149ºF)
HeatingOptional
CoolingNature cooling
Enclosure ratingIP67
Smoke detectionYes
AlarmYes
Fire extinguishing systemYes
Remote CommunicationYes
Warranty4Battery modules come with a 5-year or 200,000-kilometer                  warranty
