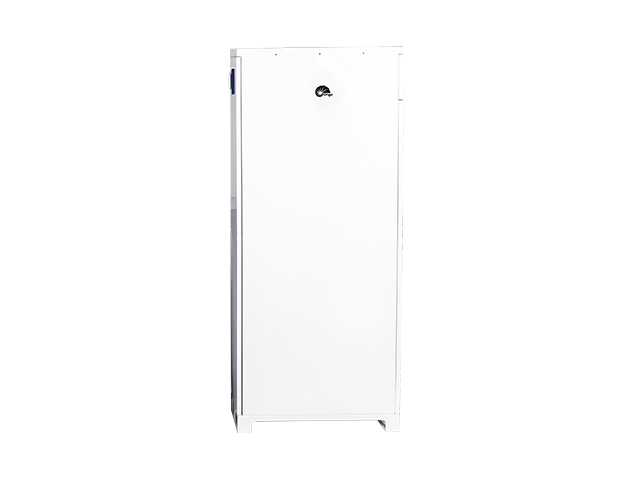

HESS HV15C384C40

  • Dimensions W/H/D

    600ⅹ1550ⅹ300mm

  • Weight (approximate）

    151Kg

  • Usable capacity

    13.8kWh

  • Inverter efficiency

    94.5% peak

  • Nominal power rating (Grid-tied output at 40°C)

    7kW

  • Cooling

    Passive

  • Altitude

    Up to 2,500 meters (8,200 feet)

  • Mounting

    Wall mounting

More +

HESS + BATTERY SYSTEM

The HESS + battery system series is an intelligent energy storage solution that is safe, long-lasting and offers to 5-20+kWh of battery capacity. The sleek design combines smart energy management software with the safest and longest lasting batteries to efficiently manage home energy. It is comprised of basic Battery units,and can be scalable as needed. Installers can quickly design the right system size to meet the needs of both new and retrofit solar customers.

Reliable

• Proven high reliability LISHEN Series inverters

• limited warranty

• Independent Battery base units

• Cooling (fans)

Smart

• Grid-forming capability for backup operation

• Remote software and firmware upgrade

• Mobile app-based monitoring and control

Simple

• Fully integrated AC battery system

• Quick and easy plug-and-play installation

• Interconnects with standard household AC wiring

Safe

• Cells safety tested

• Lithium iron phosphate (LFP) chemistry for maximum safety and longevity

Convenient

Usage throughout the day, store excess solar power for use at night and provide reliable backup power during power outages



Data Sheet

HESS HV15C2305i

MODEL NUMBER
HESS HV15C384C40
HESS V15

HESS HV15 system with integrated inverter and battery management unit (BMU).

include:

- - Based on an LISHEN HESS Battery 3 kWh basic unit (BB01-24S2P20), the scalable system has 15KWh

- Standing, interconnect kit for wiring between batteries

Dimensions W/H/D660ⅹ1550ⅹ300mm
Weight (approximate)151Kg
Usable capacity13.8kWh
Inverter efficiency94.5% peak
Max round-trip efficiency 185.8%

Nominal power rating

(Grid-tied output at 40°C)

7kW
CoolingPassive
Altitude
Up to 2,500 meters (8,200 feet)
MountingStanding
BATTERY SPECIFICATION
Battery modules5

Total energy

15.3kWh

Nominal DC voltage

384VDC

DC battery input voltage

336-408VDC

Max charge current

20A
Cell chemistry15.3kWh with 100% DoD

Ambient operating

temperature range

-15ºC to 55ºC (5ºF to 131ºF)

Optimum operating

temperature range

5ºC to 30ºC (41ºF to 86ºF)
COMPLIANCE
Certifications

UL1973, UN38.3

Grid ConnectionsIEEE 1547, IEEE 2030.5, Rule 21
Warranty 2

10,000 cycle system warranty –

includes inverter, battery modules, cabinet

and component

Enclosure ratingIP54

We reserve the right to make technical changes. The values, outputs, other technical data, images, and diagrams in this prospectus and in data sheets, advertisements, and other promotional documents are approximate guidelines in all cases where they have not been identified as binding.

1 Maximum round trip efficiency shown is calculated using the single cycle round trip efficiency (SCRTE) formula used by SGIP admin.

2 Please observe our applicable warranty conditions.
