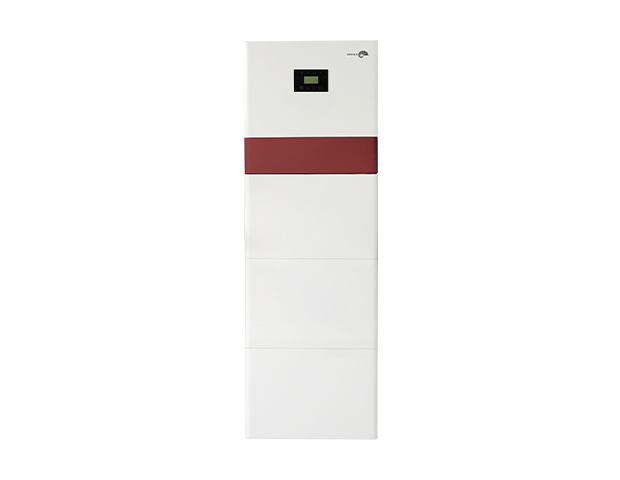

HESS+ HV30W-AIS

  • Total Energy

    10-30kWh

  • Nominal Power Rating

    6-12kW

  • Nominal DC Voltage

    102.4V

  • Cell Capacity

    100Ah

  • Cell Chemistry

    LiFePo4

  • Current Rate

    1.0C

  • Battery Modules

    2-5

  • Dimensions W/H/D

    Inverter 550*575*240mm/One BAT 550*340*355mm

More +

HESS+ Series Battery Storage System

The HESS + battery system series is an intelligent energy storage solution that is safe, long-lasting and offers to 5-20+kWh of battery capacity. The sleek design combines smart energy management software with the safest and longest lasting batteries to efficiently manage home energy. It is comprised of basic Battery units, and can be scalable as needed. Installers can quickly design the right system size to meet the needs of both new and retrofit solar customers.

Reliable

• Proven high reliability LISHEN Series inverters

• limited warranty

• Independent Battery base units

• Cooling (fans)

Smart

• Grid-forming capability for backup operation

• Remote software and firmware upgrade

• Mobile app-based monitoring and control

Simple

• Fully integrated AC battery system

• Quick and easy plug-and-play installation

• Interconnects with standard household AC wiring

Safe

• Cells safety tested

• Lithium iron phosphate (LFP) chemistry for maximum safety and longevity

Convenient

Usage throughout the day, store excess solar power for use at night and provide reliable backup power during power outages

Data Sheet

HESS+ Battery System HV30W

MODEL NUMBER

HESS+ HV30W-AIS

HESS+ HV15 Series



The HESS+ HV30 series system with integrated battery management unit (BMU). include:

- Based on an LISHEN LFP Battery 5.1 kWh  basic module(BB03-16S1P), scalable system  energy up to 30kWh

- Standing and movable, interconnect kit for  wiring between batteries

Total Energy

10-30kWh


Nominal Power Rating

6-12kW

Nominal DC Voltage

102.4v

Cell Capacity

100Ah

Cell Chemistry

LiFePo4

Current Rate


1.0C

Battery Modules

2-5

Dimensions W/H/D

Inverter 550*575*240mm/One BAT550*340*355


Max.Weight

Inverter 29Kg/One BAT 52Kg

DC/DC Efficiency>90.5%

Cooling

Inverter FAN/BAT Passive

Altitude


Up to 2500 meters (8200 feet)

Ambient Operating

Temperature Range


Discharge:-35℃ to 65℃（-31℉ to 149℉）

Charge:0℃ to 65℃（32℉ to 149℉）

Inverter

Internal Integrated

Mounting


Floor standing


Design life

10-year

Warranty2


6000 Cycles

Enclosure rating


IP65

We reserve the right to make technical changes. The values, outputs, other technical data, images,   and diagrams in  this prospectus and in data sheets,                    advertisements, and other promotional  documents are approximate guidelines in all cases where they have not been identified  as binding.

1 Maximum round trip efficiency shown is calculated using the single cycle round trip efficiency(SCRTE) formula used by SGIP admin.

2 Please observe our applicable warranty conditions.
