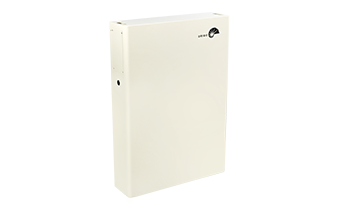

HESS+ B5W51-R2

  • Dimensions W/H/D

    460x600x160mm

  • Max. Weight

    55Kg

  • Total Energy

    5.12kWh

  • DC/DC Efficiency

    90.5%

  • Enclosure Rating

    IP54

  • Cooling

    Natural and passove

  • Altitude

    Up to 2,500 meters (8,200 feet)

  • Mounting

    Wall mounting

More +

HESS + BATTERY SYSTEM

The HESS + battery system series is an intelligent energy storage solution that is safe, long-lasting and offers to 5-20+kWh of battery capacity. The sleek design combines smart energy management software with the safest and longest lasting batteries to efficiently manage home energy. It is comprised of basic Battery units,and can be scalable as needed. Installers can quickly design the right system size to meet the needs of both new and retrofit solar customers.

Reliable

• Proven high reliability LISHEN Series inverters

• limited warranty

• Independent Battery base units

• Cooling (fans)

Smart

• Grid-forming capability for backup operation

• Remote software and firmware upgrade

• Mobile app-based monitoring and control

Simple

• Fully integrated AC battery system

• Quick and easy plug-and-play installation

• Interconnects with standard household AC wiring

Safe

• Cells safety tested

• Lithium iron phosphate (LFP) chemistry for maximum safety and longevity

Convenient

Usage throughout the day, store excess solar power for use at night and provide reliable backup power during power outages



Data Sheet

HESS+ B5W51-R2

MODEL NUMBER
HESS+ B5W51-R2
HESS+B5W Series

The HESS+ B5W series system with integrated  battery management unit (BMU). include:

- Based on an LISHEN LFP Battery 2.69 kWh  basic module, unit system energy is 5.38KWh,  which is scalable.

- Mounting brackets and other accessories

Total Energy5.12kWh
Nominal Power Rating5kW
Nominal DC Voltage51.2v
Cell Capacity100Ah
Cell ChemistryLiFePO4

Current Rate

1.0C
Battery Modules2
Dimensions W/H/D
400x600x160mm
Max. Weight55Kg
DC/DC Efficiency>90.5%

Cooling

Natural and passive

Altitude

Up to 2,500 meters (8,200 feet)

Ambient Operating

Temperature Range

Discharge: -35ºC to 65ºC (-31ºF to 149ºF)

Charge: 0ºC to 65ºC (35ºF to 149ºF)

Inverter Compatibility

Default setting is pylon tech.

Compatible with popular inverter brands such as deye, pylon tech and growatt etc.

MountingWall counting

Design Life

10-year

Warranty

6000 cycles
Enclosure Rating

IP54

We reserve the right to make technical changes. The values, outputs, other technical data, images, and diagrams in this prospectus and in data sheets, advertisements, and other promotional documents are approximate guidelines in all cases where they have not been identified as binding.

1 Maximum round trip efficiency shown is calculated using the single cycle round trip efficiency (SCRTE) formula used by SGIP admin.

2 Please observe our applicable warranty conditions.
