UN
Energy Freedom

MP+5V48

  • Dimensions W/H/D

    445*133*615mm

  • Max. Weight

    45 Kg

  • Total Energy

    5.1 kWh

  • Cell Capacity

    100Ah

  • Cell Chemistry

    LiFePo4

  • Nominal Power Rating

    5.0kW

  • Current Rate

    1.0C

  • Nominal DC Voltage

    51.2V

More +

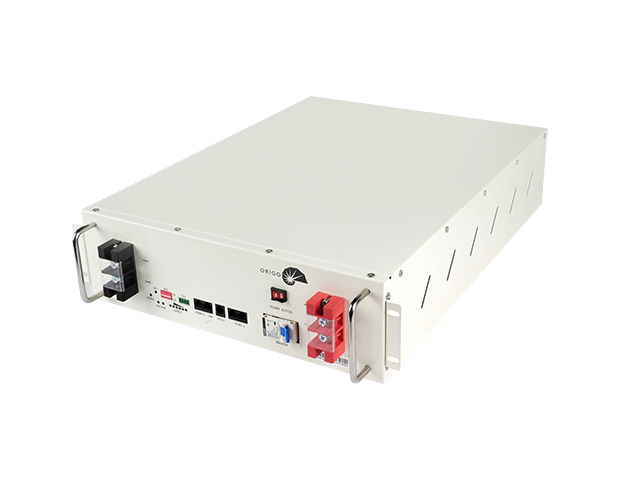

HESS+ Battery Modules

The HESS + battery system series is an intelligent energy storage solution that is safe, long-lasting and offers to 5-20+kWh of battery capacity. The sleek design combines smart energy management software with the safest and longest lasting batteries to efficiently manage home energy. It is comprised of basic Battery units, and can be scalable as needed. Installers can quickly design the right system size to meet the needs of both new and retrofit solar customers.

Reliable

• Proven high reliability LISHEN Series inverters

• limited warranty

• Independent Battery base units

• Cooling (fans)

Smart

• Grid-forming capability for backup operation

• Remote software and firmware upgrade

• Mobile app-based monitoring and control

Simple

• Fully integrated AC battery system

• Quick and easy plug-and-play installation

• Interconnects with standard household AC wiring

Safe

• Cells safety tested

• Lithium iron phosphate (LFP) chemistry for maximum safety and longevity

Convenient

Usage throughout the day, store excess solar power for use at night and provide reliable backup power during power outages



Data Sheet

MP+5V48

MODEL NUMBER
MP+5V48
Total Energy5.1 kWh
Nominal Power Rating5.0 kW
Nominal DC Voltage51.2V
Cell Capacity100Ah
Cell ChemistryLiFePo4

Current Rate

1.0C
Pannel Width448mm
Dimensions W/H/D445*133*615mm
Max.Weight50 Kg
Enclosure ratingIP23
We reserve the right to make technical changes. The values, outputs, other technical data, images, anddiagrams in this prospectus and in data sheets, advertisements, and other promotional documents areapproximate guidelines in all cases where they have not been identified as binding.

1 Maximum round trip efficiency shown is calculated using the single cycle round trip efficiency

(SCRTE) formula used by SGIP admin.

2 Please observe our applicable warranty conditions.



Download +
Others
  • HESS+ B5M48
    • Total Energy

      Scalable n*5 kWh

    • Rated Power

      5.0kw

    • Nominal Voltage

      51.2v

    Datasheet
  • HESS+V40F51-R1
    • Dimensions W/H/D

      590*1300*670mm

    • Max. Weight

      395Kg

    • Total Energy

      40.0 kWh

    Datasheet
  • HESS+ B10W51-R1
    • Dimensions W/H/D

      600x850x160mm

    • Max. Weight

      95Kg

    • Total Energy

      10.2kWh

    Datasheet
  • HESS+ V40R
    • Dimensions W/H/D

      460x1200x630mm

    • Max. Weight

      366Kg

    • Total Energy

      10-40kWh

    Datasheet
  • MP+5V48
    • Dimensions W/H/D

      445*133*615mm

    • Max. Weight

      45 Kg

    • Total Energy

      5.1 kWh

    Datasheet
  • HESS+ HV30W-AIS
    • Total Energy

      10-30kWh

    • Nominal Power Rating

      6-12kW

    • Nominal DC Voltage

      102.4V

    Datasheet
  • HESS B30U307S
    • Total Energy

      30.72 kWh

    • Rated Power

      9.8kW

    • Nominal Voltage

      307.2V

    Datasheet
  • HESS VW10C420225
    • Dimensions W/H/D

      700 mm*550 mm*245mm (Wall Bracket Excluded)

    • Weight (approximate）

      98 kg

    • Usable capacity

      9.2kWh

    Datasheet
  • MP+10V48
    • Dimensions W/H/D

      400*250*580mm

    • Max. Weight

      90 Kg

    • Total Energy

      10.2 kWh

    Datasheet
  • HESS+ B5W51-R2
    • Dimensions W/H/D

      460x600x160mm

    • Max. Weight

      55Kg

    • Total Energy

      5.12kWh

    Datasheet
  • HESS HV15C384C40
    • Dimensions W/H/D

      600ⅹ1550ⅹ300mm

    • Weight (approximate）

      151Kg

    • Usable capacity

      13.8kWh

    Datasheet
  • HESS+ B5W51-R1
    • Dimensions W/H/D

      460x670x150mm

    • Max. Weight

      55Kg

    • Total Energy

      5.38kWh

    Datasheet
