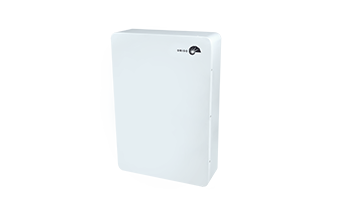

HESS+ B10V51-R1

  • Dimensions W/H/D

    550ⅹ700ⅹ250mm

  • Max. Weight

    95Kg

  • Total Energy

    10.3kWh

  • DC/DC Efficiency

    90.5%

  • Enclosure Rating

    IP54

  • Cooling

    Natural and Passive

  • Altitude

    Up to 2,500 meters (8,200 feet)

  • Mounting

    Floor standing or wall mounting

More +

HESS + BATTERY SYSTEM

The HESS + battery system series is an intelligent energy storage solution that is safe, long-lasting and offers to 5-20+kWh of battery capacity. The sleek design combines smart energy management software with the safest and longest lasting batteries to efficiently manage home energy. It is comprised of basic Battery units,and can be scalable as needed. Installers can quickly design the right system size to meet the needs of both new and retrofit solar customers.

Reliable

• Proven high reliability LISHEN Series inverters

• limited warranty

• Independent Battery base units

• Cooling (fans)

Smart

• Grid-forming capability for backup operation

• Remote software and firmware upgrade

• Mobile app-based monitoring and control

Simple

• Fully integrated AC battery system

• Quick and easy plug-and-play installation

• Interconnects with standard household AC wiring

Safe

• Cells safety tested

• Lithium iron phosphate (LFP) chemistry for maximum safety and longevity

Convenient

Usage throughout the day, store excess solar power for use at night and provide reliable backup power during power outages

Data Sheet

HESS+ B5V51-R3

MODEL NUMBER
HESS+ B10V51-R3
HESS+ B10V Series

The HESS+ B10V series system with integrated  battery management unit (BMU). include:


- Based on an LISHEN LFP Battery 5.1 kWh  basicmodule(BB02B-8S1P), unit system  energy is 10.2KWh, which is scalable.

- Mounting brackets and other accessories

Total Energy

10.3kWh

Nominal Power Rating

5kW

Nominal DC Voltage51.2v
Cell Capacity202Ah
Cell ChemistryLiFePO4

Current Rate

1.0C
Battery Modules2
Dimensions W/H/D
550x700x250mm

Max. Weight

95kG
DC/DC Efficiency

＞90.5%

Cooling

Natural and passive

Altitude

Up to 2,500 meters(8,200 feet)

Ambient Operating

Temperature Range

Discharge: -35℃ to 65℃(-31℉ to 149℉)

Charge: 0℃ to 65℃(32℉ to 149℉)

Inverter Compatibility

Default setting is Pylon Tech. Compatible with popular inverter brands such  as deye, pylon tech and growatt etc.
MountingFloor standing or wall mounting
Design Life10-year

Warranty

6000 cycles

Enclosure Rating

Ip54

We reserve the right to make technical changes. The values, outputs, other technical

data, images, and diagrams in this prospectus and in data sheets, advertisements, and

other promotional documents are approximate guidelines in all cases where they have

not been identified as binding.

1 Maximum round trip efficiency shown is calculated using the single cycle round trip

efficiency (SCRTE) formula used by SGIP admin.

2 Please observe our applicable warranty conditions.
