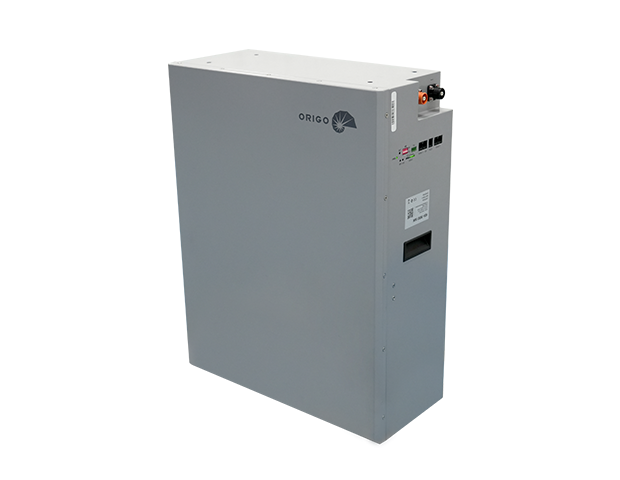

HESS VW10C420225

  • Dimensions W/H/D

    700 mm*550 mm*245mm (Wall Bracket Excluded)

  • Weight (approximate）

    98 kg

  • Usable capacity

    9.2kWh

  • Rated Current

    100A

  • Peak Power

    10.2kW @ 1s

  • Cooling

    Passive

  • Altitude

    Up to 2500 meters (8200 feet)

  • Mounting

    Standing

More +

HESS + BATTERY SYSTEM

The HESS + battery system series is an intelligent energy storage solution that is safe, long-lasting and offers to 5-20+kWh of battery capacity. The sleek design combines smart energy management software with the safest and longest lasting batteries to efficiently manage home energy. It is comprised of basic Battery units, and can be scalable as needed. Installers can quickly design the right system size to meet the needs of both new and retrofit solar customers.

Reliable

• Proven high reliability LISHEN Series inverters

• limited warranty

• Independent Battery base units

• Cooling (fans)

Smart

• Grid-forming capability for backup operation

• Remote software and firmware upgrade

• Mobile app-based monitoring and control

Simple

• Fully integrated AC battery system

• Quick and easy plug-and-play installation

• Interconnects with standard household AC wiring

Safe

• Cells safety tested

• Lithium iron phosphate (LFP) chemistry for maximum safety and longevity

Convenient

Usage throughout the day, store excess solar power for use at night and provide reliable backup power during power outages

Data Sheet

HESS VW10C420225

MODEL NUMBER
HESS VW10C420225
Dimensions W/H/D700 mm*550 mm*245mm  (Wall Bracket Excluded)
Weight (approximate)98Kg
Usable capacity10.2kWh
Max round-trip efficiency 185.8%

Nominal power rating

(Grid-tied output at 40°C)

5kW
CoolingPassive
Altitude
Up to 2500 meters (8200 feet)
MountingStanding
BATTERY SPECIFICATION

Total energy

10.2 kWh

Nominal DC voltage

51.2 VDC

DC battery input voltage

46 ~ 56 VDC

Max charge current

100A
Cell chemistryLithium Iron Phosphate (LiFePO4 )

Ambient operating

temperature range

5˚F ~ 131˚F (5˚C ~ 30˚C)

Optimum operating

temperature range

41˚F ~ 86˚F (5˚C ~ 30˚C)
COMPLIANCE
Certifications

 UL1973, CE, UN38.3

Warranty 2

10,000 cycle system warranty –

includes inverter, battery modules, cabinet

and component

Enclosure ratingIP54
We reserve the right to make technical changes. The values, outputs, other technical data, images, and diagrams in this prospectus and in data sheets, advertisements, and other promotional documents are approximate guidelines in all cases where they have not been identified as binding.

1 Maximum round trip efficiency shown is calculated using the single cycle round trip efficiency (SCRTE) formula used by SGIP admin.

2 Please observe our applicable warranty conditions.
